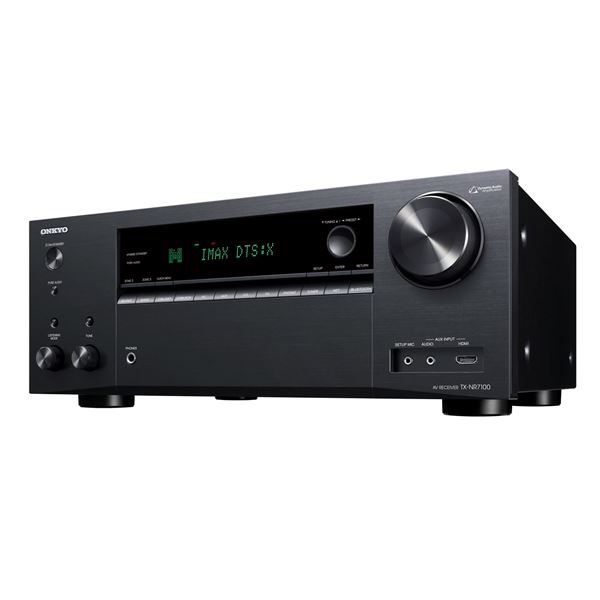

ONKYO 9.2 CH Home theatre receiver. 3 Audio zones with 2 zones HDMI.

Model: TXNR7100B

ONKYO 9.2 CH Home theatre receiver. 3 Audio zones with 2 zones HDMI. Main HDMI out 8K.

Turn your home into a living media sanctuary with 9.2-channel Dynamic Audio Amplification (DAA) supporting 3D surround sound and powered multi-zone audio together with the SMART AV Receiversuite for effortless voice-controllable entertainment via a Google Assistant or Amazon Alexa-enabled device. HDMI® supports 8K/60p and dynamic HDR (including HDR10+ and Dolby Vision) passthrough to compatible TVs, projectors, or gaming monitors connected via eARC-ready Main Out. Be overwhelmed by the hyper-realistic THX® Certified Select reference experience, and explore the master-quality IMAX® Enhanced film library. Unique functions such as Front-to-Height stereo switching for ambient background listening, DSP vocal/dialogue enhancement, and practical GUI functions simplify everyday operation. Whether gaming, watching a favourite TV series, or streaming Hi-Res Audio, a more prosperous emotional life awaits inside the Onkyo signature sound.



FEATURES:

  • 220W/Ch THX® Certified Select DAA system
  • IMAX® Enhanced certified for immersive signature sound by DTS:X®
  • 5.2.4-ch/7.2.2-ch Dolby Atmos® and DTS:X playback
  • Supports Dirac Live® Room Correction
  • AccuReflex phase-matching solution for Atmos-enabled speakers
  • SMART AV ReceiverWorks with Sonos*1, Chromecast built-in, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD*2, Pandora®, TIDAL, Deezer, and TuneIn streaming services*3
  • Works with Hey Google or Alexa*4
  • Stream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard*5
  • HDMI® inputs 1-3 and Main/Sub outputs support 8K@60p (4:2:0/10-bit), 8K@30p (4:4:4/10-bit), 4K/120p(4:4:4/10-bit) video pass-through
  • HDMI terminals*9 support HDR10+, Dolby Vision and BT.2020 colour; VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT (Quick Frame Transport) passthrough; eARC (Main Out), and HDCP 2.3
  • HDMI Sub/Zone 2 Out for media transmission to a second display
  • Send or receive audio via Bluetooth® wireless technology (RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX/ aptX HD)
  • Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines
  • 5.2-ch Main + Powered Zone 2 + Powered Zone 3 speakers support synced/independent D/A audio playback (including HDMI/SPDIF/NET*6)
  • Zone 2/Zone B line-out*7 (analog RCA) supports synced or independent D/A playback*8 on compatible audio systems or headphone docks
  • 220W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven), 100W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2 channels driven, FTC)
  • THX Certified Select
  • Certified for IMAX Enhanced
  • Onkyo Dynamic Audio Amplification (DAA)
  • Discrete 2-stage non-phase-shift amplifier circuitry
  • Custom High-Current Low-Noise Power Transformer
  • Large custom-made audio-grade power capacitors
  • Strengthened power-supply line supports high-current dynamics
  • Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines
  • An isolated network module reduces high-frequency signal interference on audio circuitry
  • High current capability drives 4-ohm loads through 9 channels
  • Precision 192 kHz/24-bit D/A conversion for Hi-Res Audio
  • VLSC(Vector Linear Shaping Circuitry) noise filtering (Front L/R)
  • PLL (Phase Locked Loop) anti-jitter technology for SPDIF audio
  • Independent tone controls for all channels (excluding Zone 3)











 *1 Requires a Sonos Connect or Port (sold separately). Connection of 1–3 Sonos devices is supported with volume control enabled via the Sonos app for iOS and Androiddevices. *2 Amazon Music HD is supported via DTS Play-Fi. *3 Streaming service availability may vary by region. An account and subscription may be required for some streaming services. *4 Voice control requires an Alexa built-in or Google Assistant-enabled device, such as a smart speaker or smartphone. Interoperability with streaming services depends on the respective technology and the country or region. *5 Some countries or regions have regulations that affect wireless signal strength and the use of Wi-Fi channels. *6 Zone 3 supports analog/ NET only. In Zone 2, HDMI and SPDIF support 2-ch PCM audio signals only, and HDMI audio is supported via HDMI inputs 1–3. Simultaneous playback of multiple audio sources is enabled. *7 Zone B and Zone 2 line-out modes are shared on the same analog RCA line-out terminal. *8 When set to Zone 2 mode, HDMI audio is available on inputs 1–3; SPDIF and HDMI support 2-ch PCM signals only; and simultaneous playback of multiple audio sources is enabled. When set to Zone B mode, encoded and 2-ch PCM audio playback for all inputs is enabled in MAIN and Zone B. *9 Features defined in HDMI 2.1 specification, HDR10+, and passthrough capabilities described are supported on HDMI inputs 1–6, Main Out, and Sub/Zone 2 Out in Sub Mode output.
