Wire Connectors

Quick Link

IDC-Jellybean
IDL86-930

IDEAL INDUSTRIES UR2 Red IDC 3-Wire Butt Splice Jellybean Wire Connector Pack of 100. For Solid Copper Conductors with 0.4mm2 - 0.9mm2. Compatible with IDL33-719.
IDL86-955

IDEAL INDUSTRIES UY2 Yellow IDC 2-Wire Butt Splice Jellybean Wire Connector Pack of 100. For Solid Copper Conductors with 0.4mm2 - 0.9mm2. Compatible with IDL33-719.
Lever Connector
IDL30-0092J

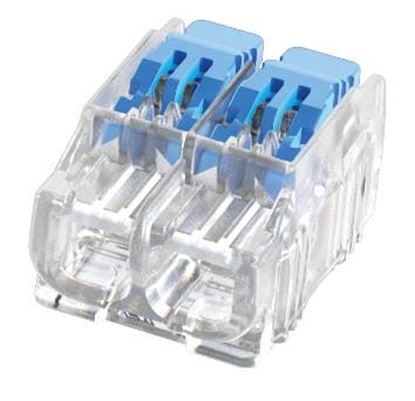

IDEAL INDUSTRIES 32A 2 Port Wire Connector Gen II Lever. 100pc Jar. 0.2 mm2 to 4.0 mm2 (Solid/Stranded) and 0.14 mm2 to 4.0 mm2 for Flexible Wire.
IDL30-0093J

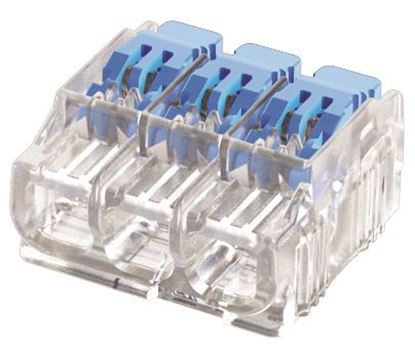

IDEAL INDUSTRIES 32A 3 Port Wire Connector Gen II Lever. 50pc Jar. 0.2 mm2 to 4.0 mm2 (Solid/Stranded) and 0.14 mm2 to 4.0 mm2 for Flexible Wire.
IDL30-0095J

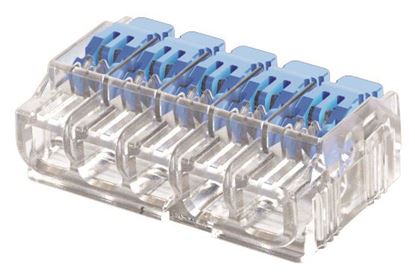

IDEAL INDUSTRIES 32A 5 Port Wire Connector Gen II Lever. 30pc Jar. 0.2 mm2 to 4.0 mm2 (Solid/Stranded) and 0.14 mm2 to 4.0 mm2 for Flexible Wire.
Push-In Connector
IDL30-1132J

IDEAL INDUSTRIES 32A 2 Port Push-in Wire Connector 100pc Jar. 0.75mm2 - 4.0mm2 Solid, 1.5mm2 - 2.5mm2 Stranded (7 strands), Copper Conductors or Tin Bonded Flexible Wire.
IDL30-1133J

IDEAL INDUSTRIES 32A 3 Port Push-in Wire Connector 100pc Jar. 0.75mm2 - 4.0mm2 Solid, 1.5mm2 - 2.5mm2 Stranded (7 strands), Copper Conductors or Tin Bonded Flexible Wire.
IDL30-1142J

IDEAL INDUSTRIES 32A Spliceline Wire Connector 100pc Jar. 0.5mm2 - 4.0mm2 Solid or 1.0 mm2 - 2.5 mm2 Stranded.
Twister Connector
IDL30-1161

IDEAL INDUSTRIES 24A Grey/Orange WeatherProof Twister Wire Connector 25pc Card. Wire Range Capacity: Min - 1 x 1.5mm2; Max - 2 x 2.5mm2.
IDL30-1261J

IDEAL INDUSTRIES 24A Grey/Orange WeatherProof Twister Wire Connector 150pc Jar. Wire Range Capacity: Min - 1 x 1.5mm2; Max - 2 x 2.5mm2.
IDL30-1163

IDEAL INDUSTRIES 32A Grey/Blue WeatherProof Twister Wire Connector 15pc Card. Wire Range Capacity: Min - 3 x 2.5mm2; Max - 6 x 4.0mm2.
IDL30-1263J

IDEAL INDUSTRIES 32A Grey/Blue WeatherProof Twister Wire Connector 50pc Jar. Wire Range Capacity: Min - x 2.5mm2; Max - 6 x 4.0mm2.
IDL30-1262J

IDEAL INDUSTRIES 32A Grey/Red WeatherProof Twister Wire Connector 100pc Jar. Wire Range Capacity: Min - 2 x 1.5mm2; Max - 4 x 4.0mm2.
IDL30-1162

IDEAL INDUSTRIES 32A Grey/Red WeatherProof Twister Wire Connector 20pc Card. Wire Range Capacity: Min - 2 x 1.5mm2; Max - 4 x 4.0mm2.
IDL30-241JA

IDEAL INDUSTRIES 41A Tan Twister Wire Connector 150pc Jar. Wire Range Capacity: Min - 3 x 0.5mm2; Max - 2 x 6.0mm2.
IDL30-242JA

IDEAL INDUSTRIES 57A Grey Twister Wire Connector 75pc Jar. Wire Range Capacity: Min - 3 x 2.5mm2; Max - 2 x 10.0mm2.
IDL30-902

IDEAL INDUSTRIES Spin-Twist Wire Connector Socket for Wire-Nut, WireTwist, Wing-Nut, WingTwist, Twister, B-CAP and Competitve Brands.
Wire Connector Kit
IDL30-0099

IDEAL INDUSTRIES 2, 3 and 5 Port Wire Connector 32A Gen II Lever Kit. 0.2 to 4.0 mm2 Wire Diameter. Box of 30 (10 Each).
IDL30-5011EU

IDEAL INDUSTRIES 32A Push-In Connector Kit. Box of 120 Includes 30x Spliceline and 30x of each Push-in (2, 3 and 4 Port) Connectors.
IDL30-5020EU

IDEAL INDUSTRIES In-Sure Push-In Connector Premium 32A and 24A Kit. Box of 225. Includes 50x of Each Push-in Connector (2, 3 & 4 Ports), 40x 5 Port, 20x 6 Port, 15x 8 Ports and 30x Twister Connectors.
IDL30-5021EU

IDEAL INDUSTRIES In-Sure Push-In Connector Starter Kit. Box of 110 Includes 30x of Each Push-in Connectors (2, 3 and 4 Ports) and 20x 6 Ports Push-in Connectors.
IDL30-5026EU

IDEAL INDUSTRIES Premium Push-In and Lever Wire Kit. Box of 240 Includes 30x of Each 2 Port (lever and Push-in), 20x of Each 4 port Push-in, 5 Port Lever, 15x of Each Push-in (5 and 6 Ports) 30x Splice
IDL30-5025EU

IDEAL INDUSTRIES Push-In and Lever Wire Connector Kit. Box of 80 Includes 10x of Each 2 and 3 Port (Lever and Push-in), 5x 5 Port Lever, 10x of Each 4 and 6 Ports Push-in and 15x Spliceline.
IDL30-5002EU

IDEAL INDUSTRIES Twin and Earth 32A Kit for Flat Cable. Box of 100 Includes 1x Flat Cable Stripper, 1x Cutter, 20x Splice Line, 20x each of 2 and 3 Push In Wire, 20x each 2 and 3 Port Lever Wire.
Wire Enclosure
IDL30-4000

IDEAL INDUSTRIES In-Sure Box Enclosure. Box of 10 Designed for use with Push In, Gen II Lever, Lever and SpliceLine Connectors.
IDL30-4000-1

IDEAL INDUSTRIES In-Sure Box Enclosure. Box of 20 Designed for use with Push In, Gen II Lever, Lever and SpliceLine Connectors.
