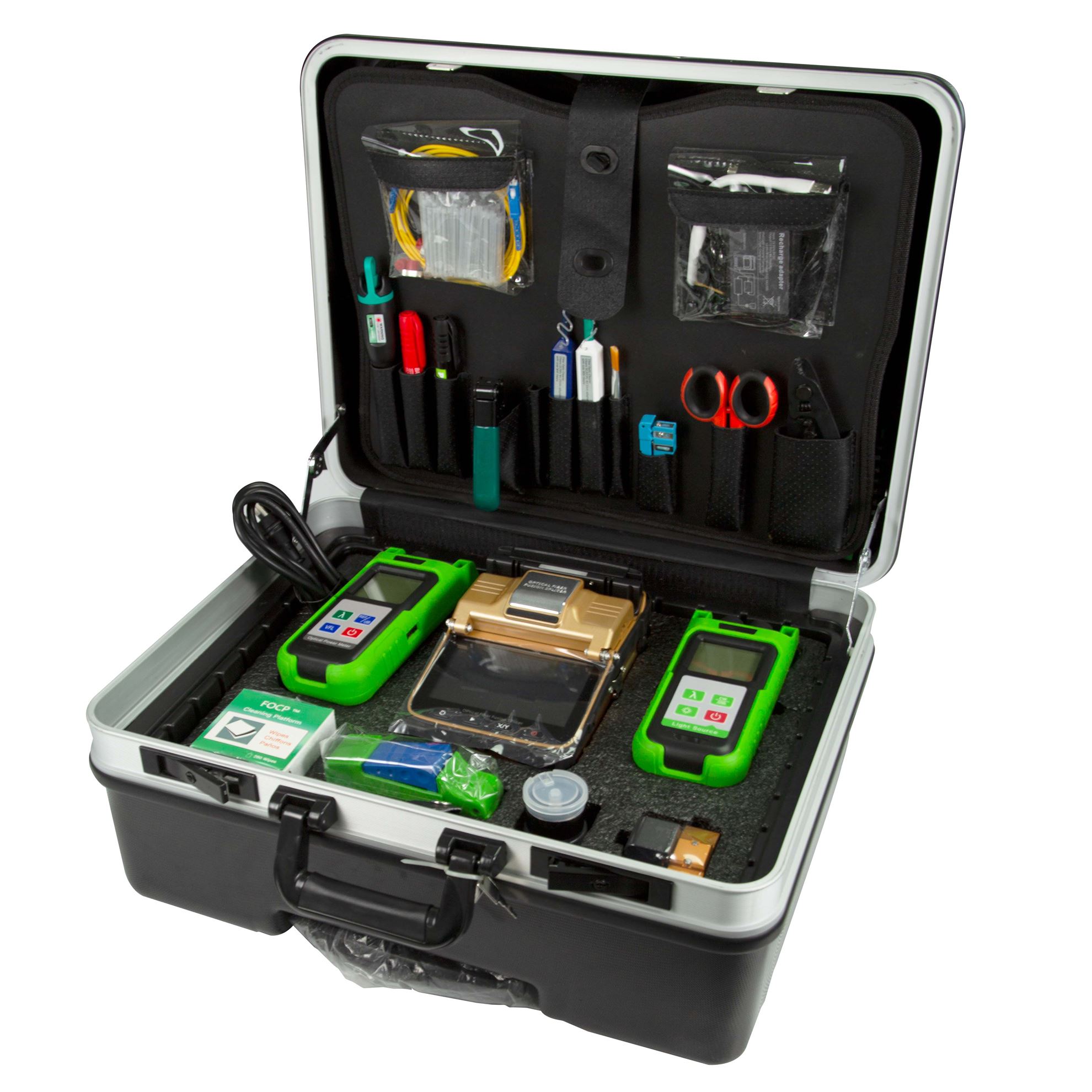

GOLDTOOL Advanced Fiber Optic Tool Kit. High Precision Fast Fusion Splicing.

Features:

• Various optical fibre tools are included
• Can be used in various and advanced tasks.
• High precision Fusion Splicer
• Fusion splicer tool kits will help to extend the optical fibre cable length
• Optical power metres and light sources can help to check the optical power device and check the fibre cable status.
• Fiber cable cleaning kits can help to maintain the connector and interface of optical devices and meters.
• Hardshell suitcase designed to be lifted and pulled easily.

TCT-5000 Fusion Splicer

• New generation Sixmotoroptical fibre fusion splicer.
• Industrial quad-core CPU with fast response.
• 5-inch 800X480 high-resolution screen
• 6 seconds of ultra-fast core aligned splicing, 15 seconds of heating, working efficiency is 50% higher than ordinary fusion splicer.
• Large-capacity lithium battery. when fully charged, heating about 240 cores.
• the external lighting design is convenient for night construction or repair.

TTK-1401 Fiber Cleaver

• Cutting angle <0.5 degrees
• Blade life 48,000 times
• Three-in-one fixture 0.25~3.0mm
• Waste fibre collection box
• Automatic tool return function

TCT-7200 Optical Power Meter with VFL

• Integrated optical power meter and visible light source locator
• Designed to meet any FTTX application.
• 6 test wavelengths, optional 850, 1300, 1310, 1490, 1550, 1625, single multimode universal.
• Different adapters can be replaced for the interface, optional automatic shutdown and automatic backlight function, fast response
• High quality imported laser head with distance up to 30 kilometers
• Silicone shell protection


TCT-5670 Optical Light Source

• Wavelength(nm) : 850/1300/1310/1550 (nm)
• Output Power : -5dB
• Adapter : FC+SC+2.5mm universal (1.25mm LC option)
• Output stability : ±0.05dB/15mins ; ±0.1dB/8hours
• Module Frequency : CW, 270Hz, 1KHz, 2KHz
