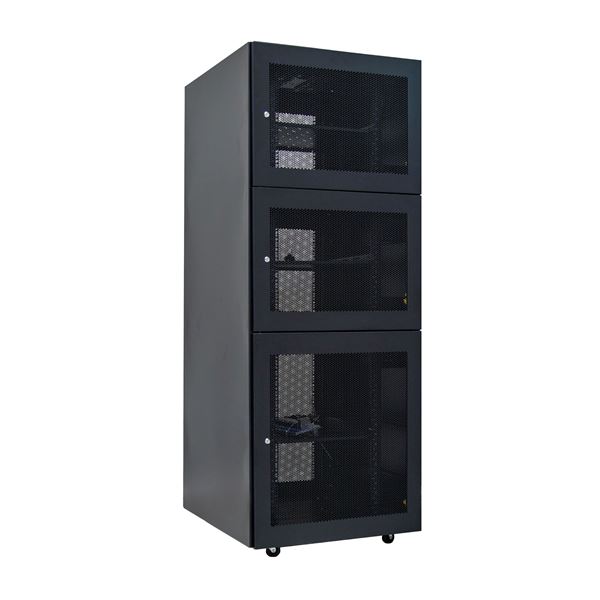

DYNAMIX 45RU Co-Location Server Cabinet with 3x 14U Compartments. Dims 800x1000x2210mm (WxDxH) Includes 4x Fans, 25x Cage Nuts, 4x Castors & 4x Level Feet. 800kg Static Load.

Our DYNAMIX SR series Co-Location network server cabinet has 45U of usable space in 2 or 3 compartments. Each compartment has its own secure space with unique key locks to protect from unauthorized access. The DYNAMIX Co-Location cabinet is secure and self-contained which allows several tenants to share a single cabinet. An ideal solution to protect sensitive electronic networking equipment such as your server, network and telecommunications equipment in a sturdy, stable and mobile rack cabinet constructed from highly durable heavy-gauge steel. Front and rear mesh doors provide additional air circulation and venting. Fully adjustable mounting rails and square mounting holes can accommodate various depth rack equipment. Cabinet comes fully assembled and supplied complete including pre-installed 2.5” heavy-duty caster wheels and levelling feet, locking system, earthing wires for front and rear doors, removable lockable side panels, 4x cooling fans trays.

FEATURES:

• Supplied with fixed shelves, 4x fans, 25x cage nuts, castors, levelling feet, earthing wires

• Static loading: 800kg

• Width: 800mm

• Depth: 800mm/1000mm

• The vertical mounting profile can be adjusted in 25mm increments

• Supplied fully assembled

• SPCC quality cold rolled steel with an easy clean surface

• Mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm

• Surface finish: Degrease, acid pickling, rust prevention, parkerizing, pure water cleaning and static electricity plastic painting

• Complies with IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3047.2-92, IP20 rated

• Compatible with 19” International standard and metrical and ETSI standards

• 2-year warranty on cabinets. Subject to use within the static loading specifications and operation within normal environmental conditions

• 1 Year Warranty  on fans
