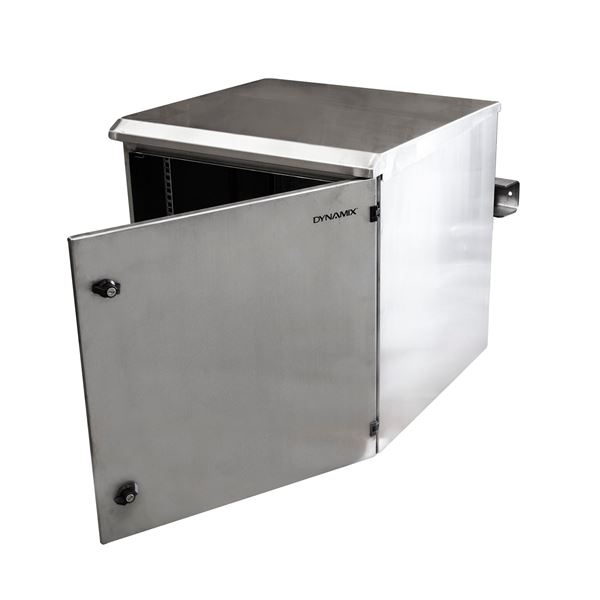

DYNAMIX 18RU Stainless Outdoor Cabinet 611x425x915mm (WxDxH).

Model: RODWSS18-400

DYNAMIX 18RU Stainless Outdoor Cabinet 611x425x915mm (WxDxH). SUS316 Stainless Steel Construction IP65 Rated with Lockable Front Door No Fans or Filters. Wall Mount Included.

Our DYNAMIX IP65 outdoor wall mounted cabinets are an ideal solution to protect sensitive electronic networking equipment from harsh and demanding environments specifically where equipment may be exposed to dust and water. Constructed from highly durable material the DYNAMIX wall mount cabinets come fully assembled and supplied complete including rain hood, detachable rear wall mount bracket, dual locking system, and grounding pin. The cabinets are available in a wide variety of sizes to suit most projects.



Features:

  • IP65 rated
  • Front door has 130° of movement, swinging from left to right
  • Sealed bottom cable entry gland
  • Static Loading: 60kg
  • Adjustable 19” front and rear rack mount rails
  • Water and dust proof polyurethane door joint strip
  • Optional plinths available to floor mount cabinets
  • Easy install fix and hang wall mount bracket included
  • Fully welded design, supplied complete, no assembly required
  • Made from cold rolled steel
  • Powder coated
  • Lockable front door
  • 2 Year warranty on cabinet
  • Available in either grey or stainless steel silver
