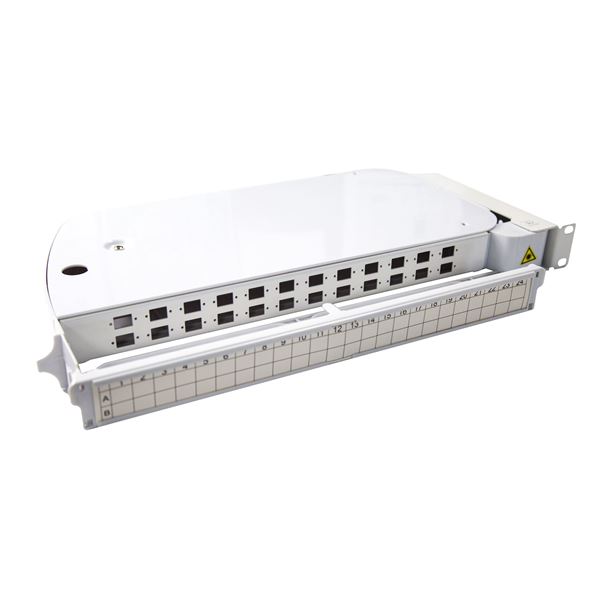

DYNAMIX 1U Rotary 24 Ports SC Simplex, Footprint Unloaded Right Hinge

ODF Rotary 1U panel is made of plastic ABS material and cold rolled steel pivotal bracket. An innovative high-density pivot panel designed to accept up to 24 SC simplex footprint adapters. The panel can pivot by up to 110° to allow easy access during installation or rework with no disturbance of the existing cable or fibres.

Features:

• Holds up to 24 SC simplex footprint adapters
• Accepts loose tube, distribution and pre-terminated cables
• Designed for 19” standard distribution frame
• Dimensions: 482 x 280.40 x 44mm

Applications:

• Telecommunications subscriber
• Fibre to the home (FTTH)
• LAN/WAN
• CATV
• Indoor Application
