REXTRON 2 Ports True 4K HDMI KVM Switch With HDCP Engine, USB 3.2,

Model: MKAG-G3112

REXTRON 2 Ports True 4K HDMI KVM Switch With HDCP Engine, USB 3.2, Audio, Hotkey Control

The MKAG-G3112 is a 2 Ports True 4K HDMI 2.0 KVM Switch with HDCP Engine built-in, allowing users to share one set of keyboard, mouse, monitor, and audio between two computers. This 2 Ports desktop KVM Switch supporting most popular resolutions up to 4K 60Hz (4:4:4) is ideal for multimedia applications. Besides, there is no need for software or interface card installation. Just connect the cables, power up the system and you are ready to have duplicated video images for multiple monitors with excellent clarity.

This True 4K 2 Ports HDMI 2.0 KVM Switch's EDID management function ensures the optimised picture output without compatibility issues. It also supports independent 3.5mm stereo analog audio, and its USB 3.2 Gen 1 ports provide excellent I/O speed to meet most requirements. For your convenience, there is a buzzer sound effect for operation confirmation.

Special Design For HDCP Slide Switch

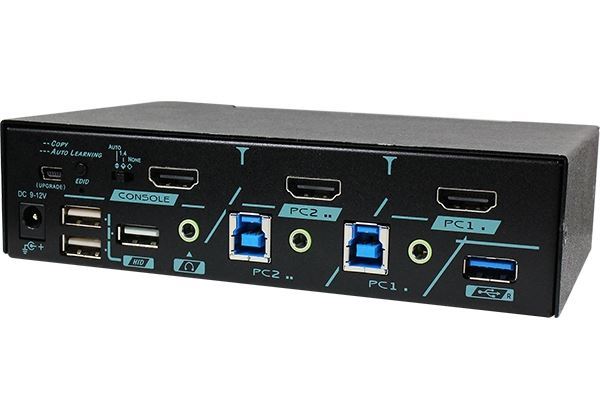

This 2 Ports HDMI 2.0 KVM Switch enables users to copy or learn EDIDs automatically from the connected monitors, and the built-in exclusive HDCP slide switch on the rear panel allows users to select the 3 preset HDCP modes:

Mode-1: Auto mode allows HDCP 2.2 or HDCP 1.4 content pass-thru (factory default)
Mode-2: HDCP 1.4 mode allows HDCP 1.4 content to be licensed
Mode-3: NONE mode allows non-HDCP content to be played
NOTE: The upgrade port (mini USB-B port) is designed for firmware updates.

Where do KVM Switches use?

The KVM switches basically have 2 to 4 USB ports, allowing you to share keyboards, mice, printers, USB thumb drives, webcams, headsets, or other peripherals.

Rextron USB KVM Switch products are suitable to be used in SOHO, Server Rooms, Airports, Stations or the environment that needs to control multiple PCs at the same time.

Rextron also provides HDMI2.1, HDMI 2.0, and Displayport 1.4 KVM products with Quad monitor, Triple monitor, Dual monitor, and Single monitor designs ideal for further requirements. Rextron KVM switch products support various video interfaces like VGA, DVI, HDMI, DisplayPort, and even the popular USB-C for the maximum of up to 8K 60Hz resolution.

We provide a variety of USB KVM switch products to meet customer requirements, like desktop KVM Switches, cabinet KVM switches, power redundant KVM switches, and Full-Frame PBP KVM Switches for PC, Mac, or Linux users.

2 Ports True 4K HDMI 2.0 KVM Switch With HDCP Engine and USB 3.2 Gen 1 Connection

Features

Allows 2 Computers Share 1 Set of KVM Console
HDMI 2.0 Video Supports Most Popular Resolutions Up to 4K 60Hz ( 4:4:4 )
HDR10 Support for Best Visual Experience
HDCP 2.2 / HDCP 1.4 Compliance Ensures
Uninterrupted Video Playback
HDCP Engine Ensures Low-Latency Switch
HDCP Management Allows User to Select Proper HDCP Version
EDID Management, Including EDID Copy / Auto EDID, Ensures Display Compatibility
Plug-and-Play without Software or Driver
Front and Rear USB Ports Allow Easy Access
USB 3.2 Gen 1 Provides Excellent 5Gbps Speed
Manual-Scan / Auto-Scan and Selectable Scan Interval
Suitable Applications Includes Office, SOHO, Gaming, Industrial Control, ...Etc
2 Flexible Switching Control Methods :
- Front Push Buttons
- Hotkey Control
