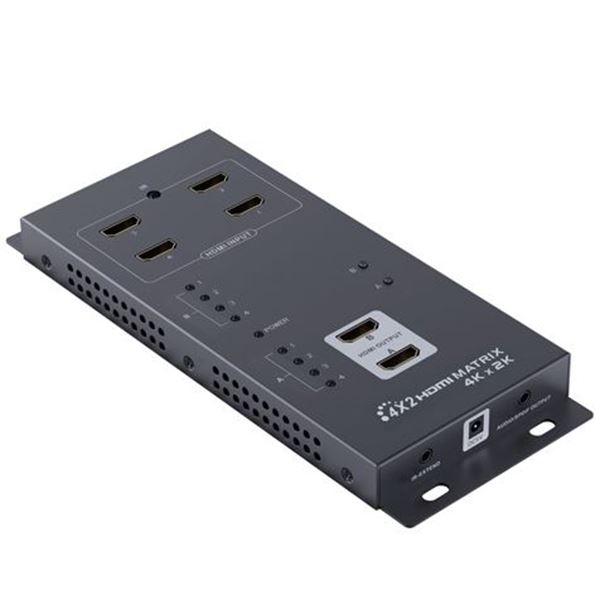

LENKENG HDMI Matrix Switch with 4x HDMI inputs & 2x HDMI Outputs.

Model: LKV342PRO

LENKENG HDMI Matrix Switch with 4x HDMI inputs & 2x HDMI Outputs. Supports up to UHD 4K2K@30Hz & 1080p Full HD. Supports 12-bit Deep Colour, CEC, HDCP, IR Remote Control. Includes remote.

This 4x2 HDMI Matrix Switch has 4x HDMI inputs and 2x HDMI outputs. It is a true matrix switch and can distribute any one of 4x sources to any 2x displays and can work as a splitter to show the same source on 2x displays simultaneously. Analogue R/L audio and digital SPDIF audio can be extracted from HDMI signal. It supports 3D HDMI and HDMI1.4 (4K2K).



Features

  • Routes four Ultra Hi-Def sources to two Ultra HD displays
  • Supports resolutions up to Ultra HD 4K2K (3840 x 2160@30Hz) and 1080p Full HD
  • Supports 12-bit Deep Color
  • Supports PCM, Dolby Digital™ and DTS Digital Surround™
  • Support audio output simultaneously (from output A)
  • HDMI input/output cables may be up to 10/15m with a 1080p/8-bit resolution
  • Supports HDMI/MHL dual mode input (input 1)
  • Supports CEC
  • Supports HDCP
  • Supports IR remote control
  • Supports surface-mountable
  • Includes remote control (LKV342PRO-REMOTE)
