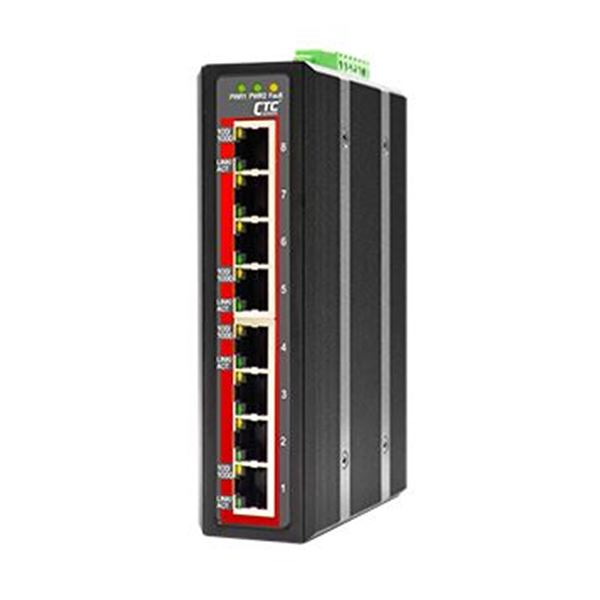

CTC UNION 8 Port Gigabit Unmanaged Switch. 8x 10/100/1000Base-T(X).

Model: IGS-800

CTC UNION 8 Port Gigabit Unmanaged Switch. 8x 10/100/1000Base-T(X). -10C~60C. Power consumption V DC/W: 12/3.3, 24/3.4, 48/4.8.

The series models are 5/8-port 10/100/1000Base-T Ethernet non-managed Gigabit switches, with either 1 or 0 port 1000Base-X SFP port, that provide stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, these switches are designed for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many militaries and utility market applications where environmental conditions exceed commercial product specifications. Standard operating temperature range models (-10°C to 60°C) and wide operating temperature range models (-40°C to 75°C) fulfil the special needs of industrial automation applications.



Features

  • 8x 10/100/1000Base-T RJ45 (IGS-800)
  • Supports broadcast storm protection
  • Supports power failure alarm message by a relay
  • Supports flow control
  • Jumbo frame support
  • Support IEEE802.3az Green Ethernet
  • Supports auto-negotiation and auto-MDI/MDI-X
  • Redundant dual DC input power 12/24/48V DC (9.6~60V DC)
  • IP30 rugged metal housing, Fanless
  • Supports DIN-Rail or wall mounting installation
  • Wide operating temperature -40°C~75°C (for E model only)
  • EN50121-4, CE, FCC Certification
  • Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
  • Industrial power supply purchased separately - MDR-40-24
  • 3 Year Warranty
