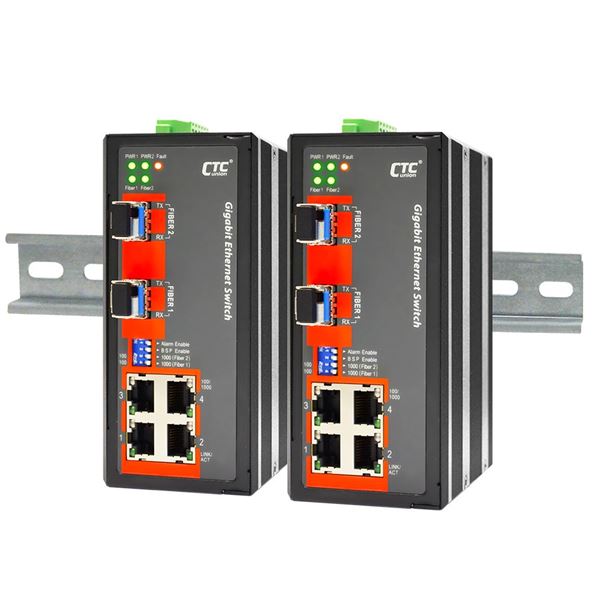

CTC UNION 4 Port Gigabit Unmanaged Switch. -10C~ 60C.

Model: IGS-402S

CTC UNION 4 Port Gigabit Unmanaged Switch. -10C~ 60C. 4x 10/100/1000Base-T(X), plus 2x 100/1000Base-X SFP. Power consumption 12/24/48V/7.9W. Dinmount kit included.

This series models are non-managed industrial grade gigabit switches with 4 10/100/1000Base-T ports and 2 fibre ports, that provide stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, these switches are designed for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many militaries and utility market applications where environmental conditions exceed commercial product specifications. Standard operating temperature range models (-10°C to 60°C) and wide operating temperature range models (-40°C to 75°C) fulfil the special needs of industrial automation applications.

Features

  • 4x 10/100/1000Base-T RJ45 + 2x 100/1000Base-X SFP (IGS-402S)
  • 12/24/48VDC redundant dual input power design
  • Wide operating temperature -40°C ~ 75°C (E model)
  • Provides broadcast storm protection
  • Supports DIP SW for alarm setting and broadcast storm protection
  • Supports power failure alarm message by relay
  • Supports flow control
  • Jumbo frame support
  • IP30 rugged metal housing and fanless
  • Supports DIN-Rail or wall mounting installation
  • UL60950-1, CE, FCC, EN50121-4 certification
  • Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
  • IP30 rugged metal housing and fanless
  • Industrial power supply purchased separately - MDR-40-24
  • 5 Year Warranty
