EDIMAX 8 Port 10/100/1000 Gigabit PoE+ Switch with DIP Switch. PoE delivery up to 200m. Power budget: 130W. Auto Energy Saving. Functions. Plug and Play. VLAN and Loop Protection. VLAN & QoS.

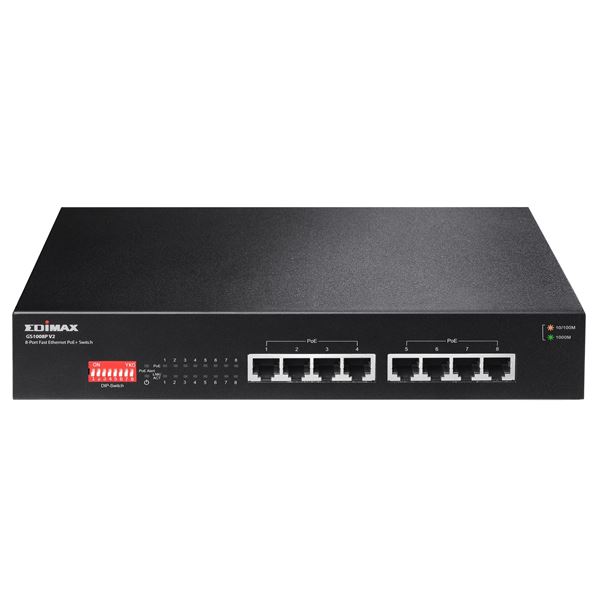

The Edimax GS-1008P V2 is an Eight PoE+ Port Gigabit switch designed for use in home, small or medium-sized network environments. With 8 DIP switches, the PoE port can be manually set for ON-OFF control to extend the PoE delivery distance up to 200m and also support port-based NO-OFF for VLAN and QoS functions. It easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras and IP phones as well as other Ethernet-enabled devices such as computers, printers and network attached storage (NAS). The device's compact size and fanless design make it an ideal solution for expanding home and small business networks.

Features:

• Eight 10/100/1000Mbps Gigabit PoE+ ports
• IEEE 802.3af/at PoE compliant for simplified deployment and installation.
• Up to 30W per PoE port (total power budget: 130W) for powering PoE-enabled devices.
• Auto-detection of powered devices (PD) and power consumption levels.
• Hardware DIP switch for “Standard” and “Extend” mode selection; the “Extend” mode features 30W PoE transmit distance of 200m at speed of 10Mbps
• Port-based VLAN and Loop Protection features
• Supports 802.1p Quality of Service (QoS)
• Includes Rack Ears

Power over Ethernet (PoE+) Auto Detection
Features eight IEEE 802.3at Power over Ethernet (PoE+) ports which supply up to 30 watts of electricity per port. It can convert standard 100V-240V AC power into low-voltage 50V-57V DC electricity to power IEEE 802.3at compliant network accessories via existing LAN cables. With PoE detection capability, the GS-1008P V2 is able to verify whether the connected device is IEEE 802.3at compliant. In the event that a PoE device is not detected, only network data will be transmitted through the LAN cable – meaning easy setup and management of network devices such as access points and network cameras.

Innovative Port-based VLAN Features
The GS-1008P V2 features port-based VLAN where ports can be isolated from each other via DIP switch port 3 & 8. This can help to prevent IP camera’s multicast or broadcast storms from affecting each other.

Hardware QoS for Video & Voice Traffic Priority
Supports 802.1p QoS via DIP switch port 4. This ensures first priority for video and voice traffic.

APPLICATION DIAGRAM
