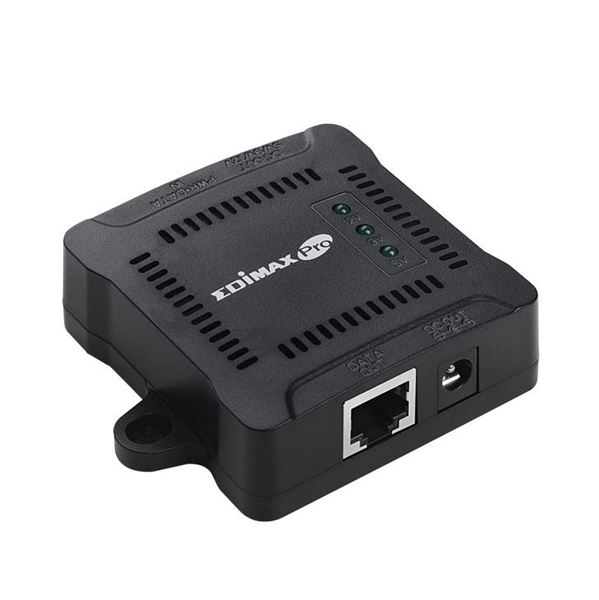

EDIMAX Gigabit PoE+ Splitter. Adjustable output power 5, 9,12VDC.

Model: GP-101ST

EDIMAX Gigabit PoE+ Splitter. Adjustable output power 5, 9,12VDC.

The GP-101ST Gigabit PoE (Power over Ethernet) Splitter delivers both data and electrical power to non-PoE Fast Ethernet or Gigabit Ethernet-enabled products such as network cameras and wireless access points, using an Ethernet cable and without deploying power outlets and electrical cabling. Ideal for remote locations, the GP-101ST allows data transfer between the PSE (Power Source Equipment) and GP-101ST up to Gigabit speeds and delivers power output voltages of 12V, 9V or 5V DC simultaneously up to 100m (328ft). The GP-101ST is easy to install and requires no tools or software while offering the benefits of cost savings as well as flexible network planning and high reliability.



Features

  • Supports IEEE802.3at/af PoE and proprietary PoE such as PoE injectors.
  • Splits a networked PoE connection into separate power and gigabit data connections.
  • Use non-PoE device in remote locations where power is unavailable.
  • Adjustable slide switch for either 5V/9V/12V DC output power.
  • PoE short circuit protection to safeguard network devices.
  • Delivers power and data to PoE splitter from up to 100M.
  • Easy Plug and Play desktop or wall-mounted installation.
  • 3 Year Warranty



APPLICATION DIAGRAM

Edimax GP-101ST IEEE 802.3at Gigabit PoE+ Splitter with Adjustable 5V DC, 9V DC, 12V DC Output

Edimax GP-101ST IEEE 802.3at Gigabit PoE+ Splitter with Adjustable 5V DC, 9V DC, 12V DC Output
