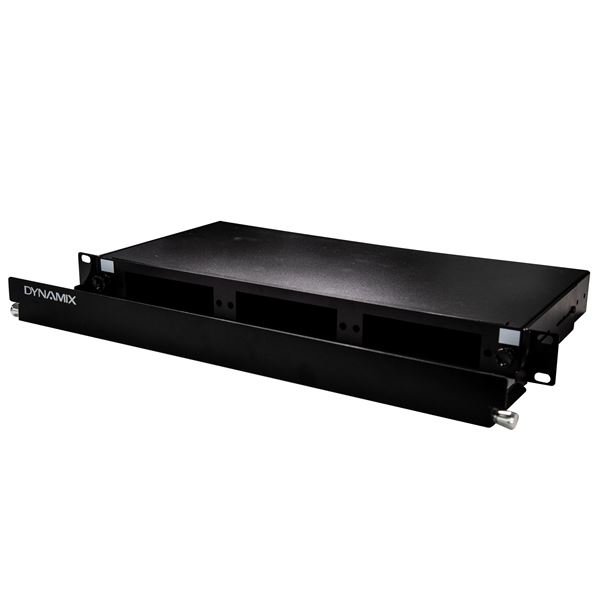

DYNAMIX 19' 1U Fibre Patch Panel Three Slot. Metal Sliding Drawer

Model: FPP3PC

DYNAMIX 19'' 1U Fibre Patch Panel Three Slot. Metal Sliding Drawer Black. Supplied with 2x 24 Port Splice Cassette, Cable Management Accessories & Cable Gland, with Front Management.

The FPP3PC sliding patch panel accepts 3x pass-through adapter plates for a total of 48FO with LC configuration. A modular panel for multi-application with MTP/MPO system, pre-terminated cables or conventional splicing. Easy front access with hinged cable management bar, which provides protection of the patch cords as well as labeling. The panel is supplied unloaded and the modules and plates are supplied separately.

Features:
  • Includes front fibre protection plate
  • High-density tray accepts up to 48x spliced fibre cores
  • Supplied with 2x 24 position splice cassettes (installed)
  • Supplied with internal cable management accessories and cable gland
  • 2x Tier screwless fibre adapter plates allow fibre adapters to sit flush with the front face of the tray (purchased separately)
  • Compatible with MPO/MTP cassettes
  • Telescopic rackmount brackets
  • 4x 20mm and 2x 25mm rear cable gland entry points
  • Dimensions: 483 x 300 x 44mm (WxDxH)
  • Colour: Black Matte
  • Weight fully loaded: 2.6Kg
