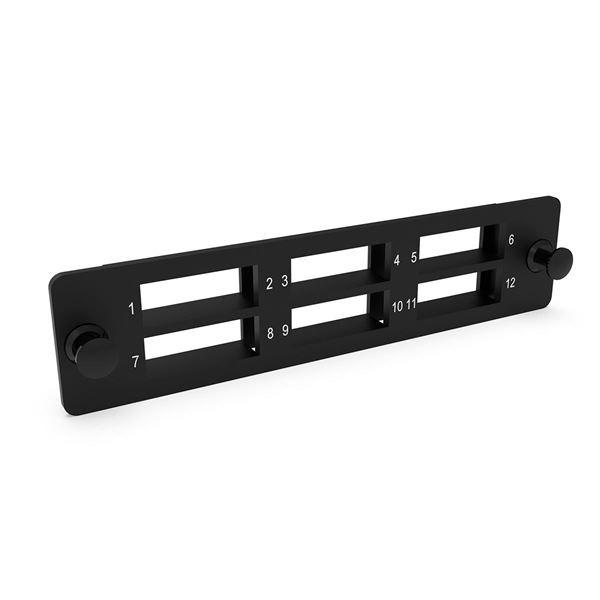

DYNAMIX SC Duplex/LC Quad 6 Port Plate Unloaded, 2x Tier Screw less

Model: FPP-SCD6

DYNAMIX SC Duplex/LC Quad 6 Port Plate Unloaded, 2x Tier Screw less Design, Black Colour. For Use with FPP3P

  • High-density tray accepts up to 36 spliced fibre cores
  • Supplied with 2x 24 position splice cassettes (installed)
  • Supplied with internal cable management accessories and cable gland
  • 2 tier screwless fibre adapter plates allow fibre adapters to sit flush with the front face of the tray (purchased separately)
  • Compatible with MPO / MTP cassettes
  • Telescopic rackmount brackets
  • 6x 20mm rear cable gland entry points
  • Easy panel identification labelling
  • High-quality tray, made from cold rolled steel
  • Dimensions: 483x200x44mm (WxDxH)
  • Colour: Black Gloss
  • Weight fully loaded: 2.6 Kg

* Requires the below NON flanged fibre adapters to fully populate

FLANGELESS Fibre Coupler Adapters

A-FXSCSC-DMM               DYNAMIX Adapter SC Duplex MM Aqua. Flangeless

A-FXSCSC-DSM                DYNAMIX Adapter SC Duplex SM Blue. Flangeless

A-FXSCAPC-DSM              DYNAMIX Adapter SCA Duplex SM Green. Flangeless

A-FXLCLC-QMM                DYNAMIX Adapter LC Quad MM Aqua. Flangeless

A-FXLCLC-QSM                 DYNAMIX Adapter LC Quad SM Blue. Flangeless

A-FXLCAPC-QSM               DYNAMIX Adapter LCA Quad SM Green. Flangeless
