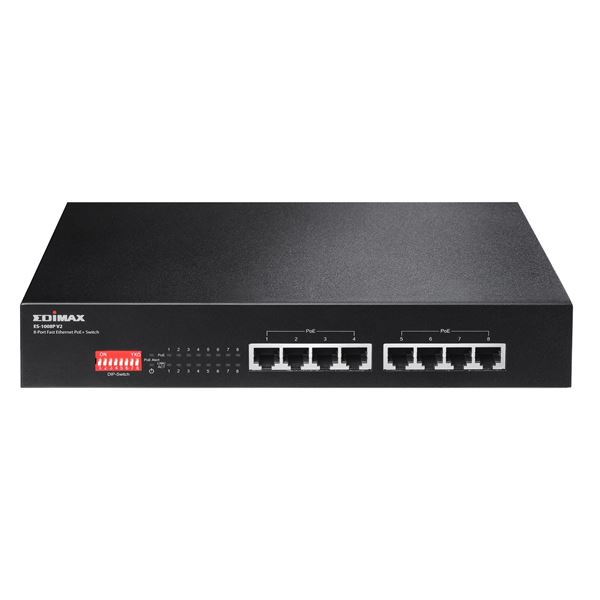

EDIMAX 8 Port 10/100 Fast Ethernet PoE+ Switch with DIP Switch.

Model: ES-1008PV2

EDIMAX 8 Port 10/100 Fast Ethernet PoE+ Switch with DIP Switch. PoE delivery up to 200m. Power budget: 130W. Auto Energy Saving Functions. Plug and Play. VLAN &

The Edimax ES-1008P V2 is an Eight PoE+ Port Fast Ethernet switch designed for use in home, small or medium-sized network environments. With eight DIP switches, PoE ports can be manually set with on/off control, extending PoE delivery distance up to 200 meters and port-based on/off control for VLAN and QoS is also supported. The switch easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras and IP phones as well as other Ethernet-enabled devices such as computers, printers or network attached storage (NAS). The compact size and fan-less design make the switch an ideal solution for expanding home and small business networks.

Features:

  • Eight 10/100Mbps Fast Ethernet PoE+ ports
  • IEEE 802.3af/at PoE compliant for simplified deployment and installation.
  • Up to 30W per PoE port (total power budget: 130W) for powering PoE-enabled devices.
  • Auto-detection of powered devices (PD) and power consumption levels.
  • Hardware DIP switch for “Standard” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 200m at speed of 10Mbps
  • Port-based VLAN and Loop Protection features
  • Supports 802.1p Quality of Service (QoS)



Power over Ethernet (PoE+) Auto Detection
Features eight IEEE 802.3at Power over Ethernet (PoE+) ports which supply up to 30 watts of electricity per port. It can convert standard 100-240V AC power into low-voltage 50V - 57V DC electricity to power IEEE 802.3at compliant network accessories via existing LAN cables. With PoE detection capability, the ES-1008P V2 is able to verify whether the connected device is IEEE 802.3at compliant. In the event that a PoE device is not detected, only network data will be transmitted through the LAN cable – meaning easy setup and management of network devices such as access points and network cameras.




Hardware QoS for Video & Voice Traffic Priority
Supports 802.1p QoS via DIP switch port 4. This ensures first priority for video and voice traffic.


APPLICATION DIAGRAM
