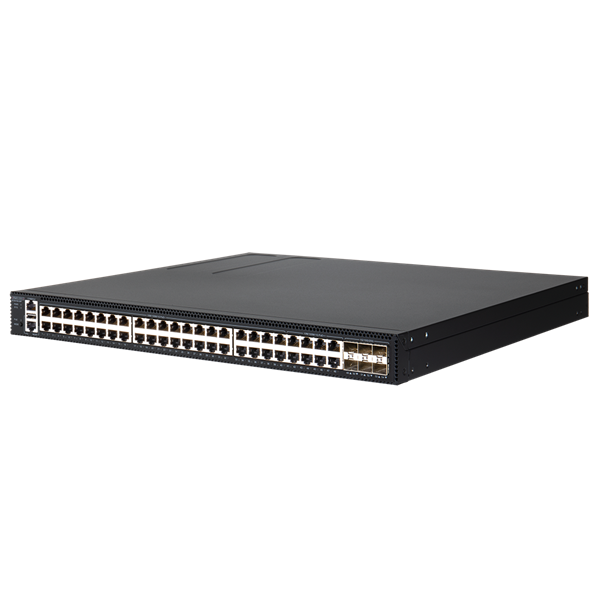

EDGECORE 48 Port Managed L2+/L3 Lite PoE Gigabit Ethernet Switch

Model: ECS4150-54P

EDGECORE 48 Port Managed L2+/L3 Lite PoE Gigabit Ethernet Switch with 6 x SFP28 25G Uplink Ports. IPv6 Management. 90 Watts PoE++.

The Edgecore ECS4150-28T switch is a Gigabit Ethernet access switch with four 10G SFP+ uplinks. The switch is ideal for Internet Service Providers (ISPs) and Multiple System Operators (MSOs) wanting to provide home users with triple-play services with up to a Gigabit of bandwidth. This switch is also positioned as Cloud Edge access switch to connect IOT and other devices in Enterprises and SMB deployments. It is also an ideal Gigabit access switch for SMB, enterprise, and campus networks. The ECS4150-28P is a PoE switch which can provide up to 30 Watts to Power Devices such as Wireless Access Point, VoIP Phone, Surveillance camera, IoT devices etc over Cat 5 UTP cable eliminate the need for individual power source. The ECS4150-28T/ECS4150-28P is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.

Features

  • Best price-performance Gigabit Ethernet access switch with 10G uplinks
  • Low power consumption with a fanless and noiseless design
  • ITU-T G.8032 ERPS L2 Ring protection with <50 convergence time
  • Comprehensive and field-proven software features for ISP/ Carrier to provide broadband access, IPTV services
  • L2+/ Lite L3 feature upgrades the L2 switch with routing functionality
  • Enhanced Security,IPv6 and Multicast features
  • Simple management (CLI, SNMP, Web, ecCLOUD, TIP OLS)
  • Complete Private MIB to fully control and monitor the switch via customer’s EMS
