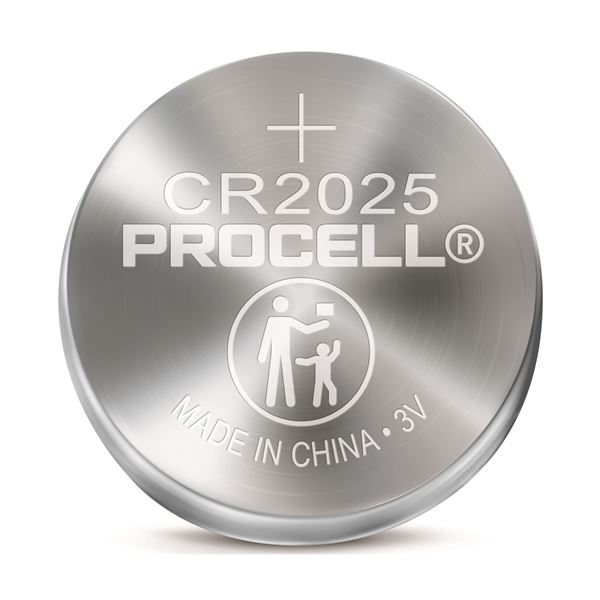

PROCELL Lithium CR2025 Coin Battery. Box of 20 (4x Strips of 5)

Model: DURPC2025

PROCELL Lithium CR2025 Coin Battery. Box of 20 (4x Strips of 5)

Features:

  • Highvoltageresponse, stable during most of the lifetime of the application
  • Reliable Performance
  • Child-Safe Markings & Retail Packaging
  • Low self-discharge with long operating life (<1% after 1 year of storage at + 20 °C)
  • Excellent resistance to corrosion
  • Designed to meet all major quality, safety and environment standards:
    • Safety: IEC 60086-4
    • Transport: UN 38.3
    • RoHS and REACH compliance
    • Quality: ISO 9001, Duracell World Class Continuous Program

Electrical Characteristics:

  • Nominal capacity (15kΩ Cont., 2.0 V cut- off) - 185mΩ
  • Nominal voltage (at+20°C) - 3.0V
  • Standard Continuous Discharge Current - 0.3mA
  • Maximum Continuous Discharge Current - 3mA
  • Maximum Pulse Discharge Current at 1 sec - 10mA
  • Nominal Energy - 525mWh
  • AC Impedance @ 1kHz - 16Ω

TYPICAL APPLICATIONS

  • Medical devices
  • Security devices
  • Fitness devices
  • Watches
  • Calculators
  • Wireless sensors
  • Toys
  • Key-Fobs & Trackers
