FLUKE Cableanalyzer 1Ghz

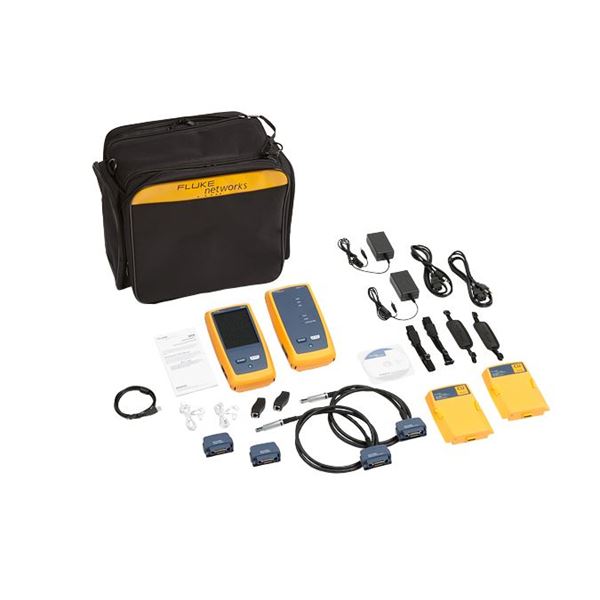

The DSX-5000 CableAnalyzer™ is the copper certification solution and is part of the Versiv™ cabling certification product family. The Versiv line also includes fibre OLTS certification and OTDR modules. Versiv is designed around the revolutionary ProjX™ management system and Taptive™ user interface. ProjX tracks jobs, to ensure they’re done correctly the first time, eliminating rework. With the Taptive user interface, instrument set-up and operation are made so simple, that even operators with limited cabling skills can successfully test and troubleshoot a system. Analysis of measurement data and professional test reports are easy using the familiar LinkWare™ management software. This all results in gaining the system acceptance faster – meaning you get paid faster.

Unique features:

• Versiv enables users to accomplish more than ever with a cable tester, by accelerating every step of the testing process
• ProjX management system eases tasks from the initial set-up of a job to system acceptance. It eliminates redundant steps and ensures that all tests are completed correctly the first time and every time
• Taptive user interface puts advanced data analysis and easy set-up and operation at the fingertips of of technicians of all skill levels
• LinkWare management software provides unmatched analysis of test results and professional test reports
• The DSX reduces the time required to fix cabling faults with Dedicated Diagnostics, a simple test that locates the problem

Performance:

• A ten-second Cat 6A test time contributes to the fastest way to gain certification
• Graphically displays the source of failures including crosstalk and distance to shield faults for faster troubleshooting
• Manage up to 12,000 test results with full graphics
• Capacitive touchscreen allows quick tester setup with easily selectable cable types, standards and testing parameters
• 1 billion links reported on LinkWare management software

Standards:

• Compliant with proposed ISO (IEC WG9 Standard IEC61935-1) Level V accuracy requirements to 1000MHz
• Supports the complete suite of Resistance Unbalance standards needed for Power over Ethernet (PoE) – IEC61935-1 & 11801-1-4, IEEE 802.3af, IEEE
• 802.3at, ANSI/TIA/EIA-568-C.2
• Next generation balance drafts – IEEE 802.3, TIA TR42.7
