CUDY AX3000 Outdoor High-power Gigabit IP65 Wi-Fi 6 Access Point.

Model: AP3000OUTDOOR

CUDY AX3000 Outdoor High-power Gigabit IP65 Wi-Fi 6 Access Point. -40~70°C, 6kV Surge, 4-Stream Dual Band Wi-Fi 6, 2402Mbps & 574Mbps, 802.3at, 48~57V Passive PoE, Max 320m Range, Connect 200 Devices

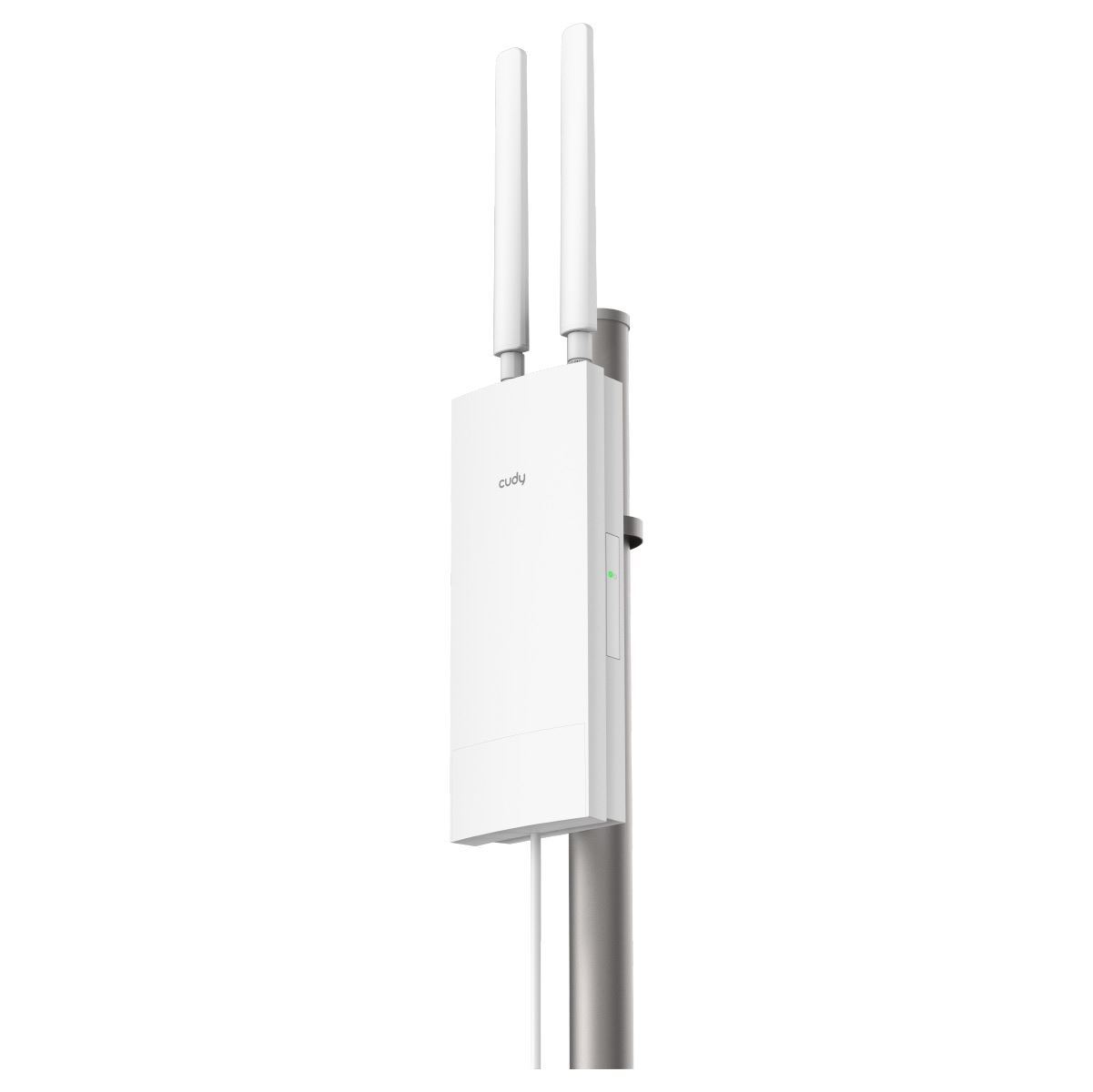

A pole/wall-mounted WiFi 6 AP featuring eFEM providing exceptional range performance. The IP65 casing, PoE, and Cudy Mesh features are ideal for high-density park, farm, and parking lot environments.

FEATURES:

IP65, -40°C~70°C, 6kV Surge
4-Stream Dual-Band Wi-Fi 6
2402Mbps + 574Mbps Wi-Fi ¹

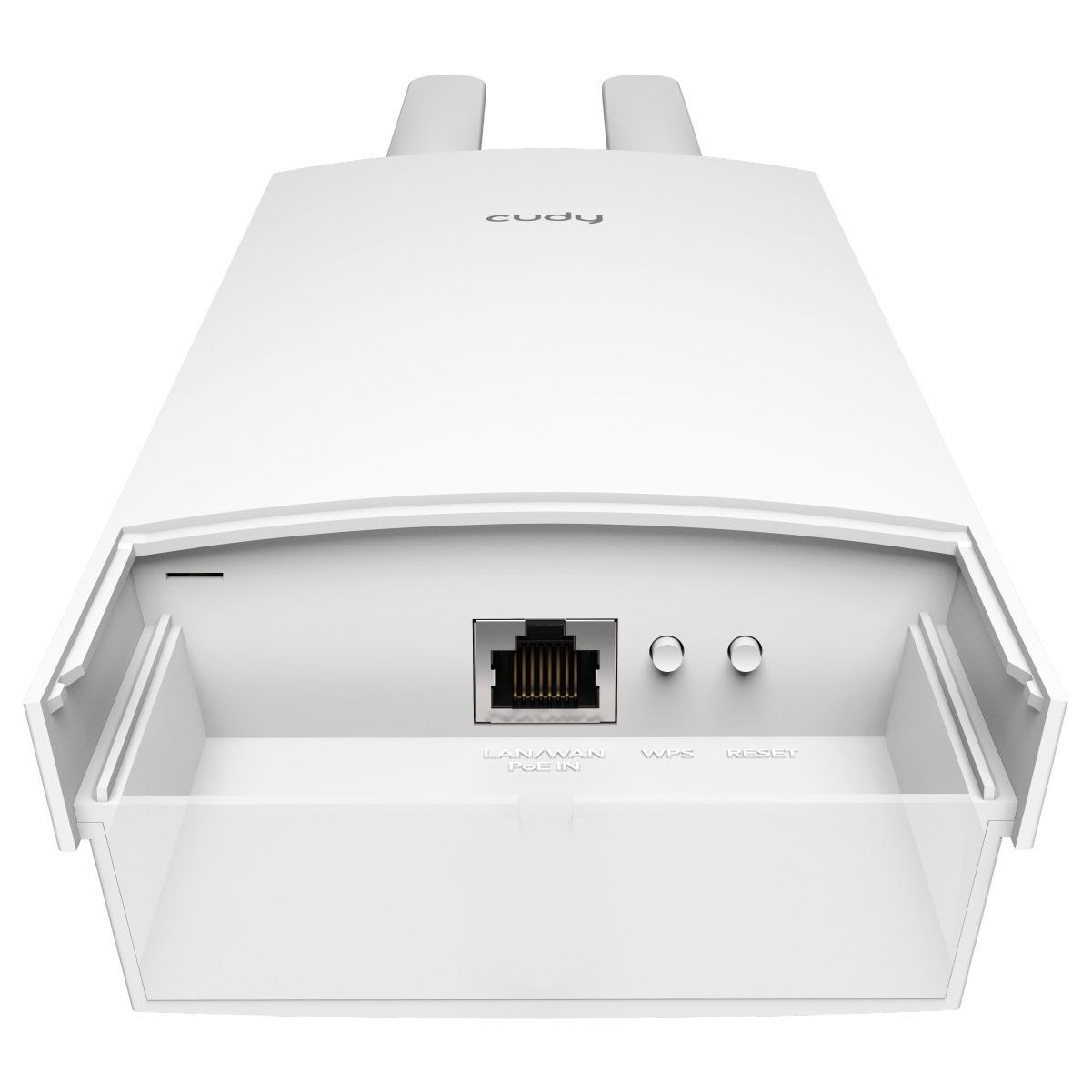

1× Shielded GbE PoE In
802.3at, 48V~57V Passive PoE
Watchdog, Schedule Reboot
Max 320m Range ²
200 Connected Devices ³

Super-Fast, Super-Efficient AX3000 Wi-Fi 6

Wi-Fi 6, with the highest 160MHz channel width and 1024-QAM modulation, provides up to 3 Gbps total throughput. OFDMA and MU-MIMO work on uplink plug downlink directions, allowing it to connect over 100 devices while minimizing latency. (Max 512 devices)

High-Power Wi-Fi Coverage with Five PA

Equipped with five power amplifiers and a 3+2 antenna structure, this AP delivers top-notch capabilities to navigate its signal through physical obstacles.

Works in Rain, Thunder, Dust, Heat, Cold

The AP is protected by an IP65 standard case, shielding it from rain and dust when installed vertically. It also features 6kV Lightning/Surge and 8kV ESD protection for higher reliability in thunderstorms. Its working temperatures span from -40°C~70°C

Seamless Roaming for Smooth Wi-Fi Experience

Enhance the Wi-Fi experience for your visitors by implementing a unified Wi-Fi name across your entire premises. With mesh technology, clients can enjoy uninterrupted roaming as they seamlessly connect to the strongest available Wi-Fi node without manual switching.

Actual wireless data throughput will vary due to network conditions, client limitations, and environmental factors, including building layout, obstacles, and client location.
The maximum range test is carried out in an open field with minimal RF interference. The client in the test was a laptop with Wi-Fi specs that followed the tested device.
Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.
